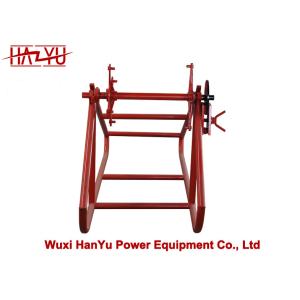

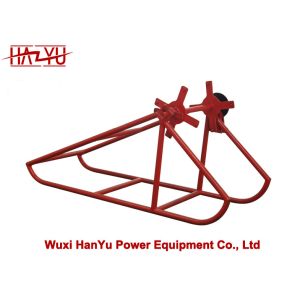

Transmission Line Stringing Tools TYCVC-002 Cradle Reel Elevators
| TYCVC Cradle Reel Elevators The Cradle reel elevators are made of welded steel with a protective coating. It is suitable to string traction rope and guide rope, with a disc brake, it have 0-150kg tension, can be used for tension stringing, when you stop to string, the reel will be stopped automatically. | |||||||
| Model | Dimensions (mm) | Capacity | Mass | ||||
| A | B | C | D min | D max | KN | kg | |
| TYCVC-002 | 2550 | 1325 | 1060 | 1100 | 1400 | 20 | 58 |
| TYCVC-201 | 3020 | 1060 | 1130 | 1900 | 26 | 150 | |
| TYCVC-004 | 2015 | 1442 | 1380 | 1400 | 30 | 390 | |
| Additional Devices Disk brake device | |||||||
